Here we provide more details in the equipment purchased from Pegasus Astro since this equipment is designed to work with each other and are critical to the successful viewing or imaging session. Equipment includes:
| Equipment | Purchas Date | Version |
|---|---|---|
| NYX-Strain Wave Mount | Purchase Date: 2026-04-12 Device ID: NYX06C540 | – Last Checked: 2026-03-17 – Version: 1.38.1 – Version Date: 2026/03/13 |
| NYX Controller | Purchase Date: 2026-04-12 | – Last Checked: 2026-03-17 – Version: 1.4 – Version Date: 2026/08/03 |
| Saddle Powerbox | Purchase Date: 2026-04-12 | N/A |
| SmartEye | Purchase Date: Model: SME-1 Serial Number: 8EDADC Firmware Version: 1.2.2 Software Version: 1.2.0 | – Last Checked: 2026-03-17 – Version – Version Date: 2026/08/03 |

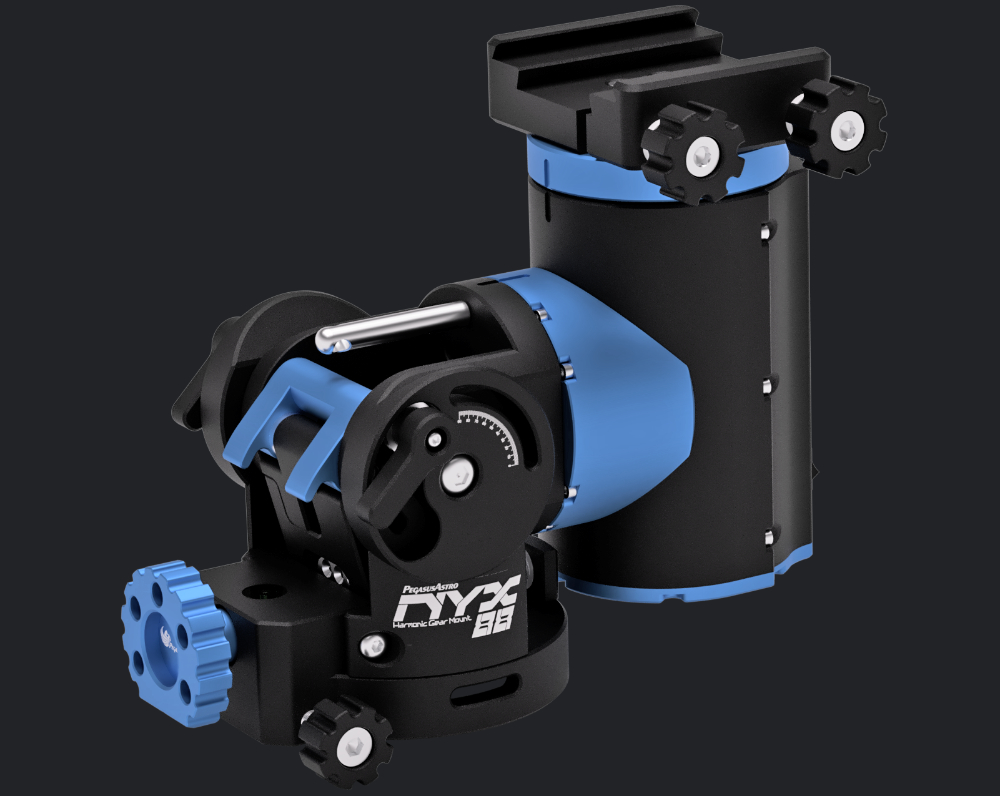

NYX-88 Harmonic Mount
The NYX-88 Harmonic mount is lightweight yet capable of handling heavy payloads. Currently I have only utilized it in Equatorial mode for visual observations.
Specifications
• Transfer Method: Strain Wave
• Weight: 5kg (11 lbs)
• Payload Capacity
• 14kg (30lbs) with no counterweight
• 20kg (44lbs) with counterweight
• PE Cycle Error: +/- 20″
• PE Cycle Time: 432s
• Supported modes: Equatorial or Altazimuth
• Connection/Communication: USB or WiFi
• Control Options: NYX Controller | PC | Mobile App | Sky-Safari
• Supported communication Protocol: ASCOM 7, ASCOM Alpaca, INDI, LX200
• Saddle Style: Losmandy & Vixen Dual Dovetail Saddle
• Power Consumption (12-14V):
| Gx12 Socket |Idle =0.4A | Tracking=0.5A | Slewing=2A |
• Guide Interface: ST-4
• Operating Temp: -20C to 50C
• Warranty: 3 years
• Accessories
• Half Pier for Carbon Tripod
• 2.1mm Male to GX12 female power cable (PEG-CABL-GX12)
• Soft Case carry bag
• Power Options
• 12V/5A with GX12 jack Power Supply
• Cigarette Lighter adapter to GX12 (CIGLIGHT-ADAPTERG12)
• 2.5mm x 5.5mm female to GX12 female adapter (PEG-ADAPT-25GX12)
Additional Resources
• Pegasus Astro Mount webpage
• Documentation
– NYX-88 Strain Wave Manual Version 1.2 (PDF)
– Firmware Update via Web Browser (PDF)
Troubleshooting
– Flashing the Mount (PDF)
Videos
– Connecting NYX-88 to SmartEye (MP4)

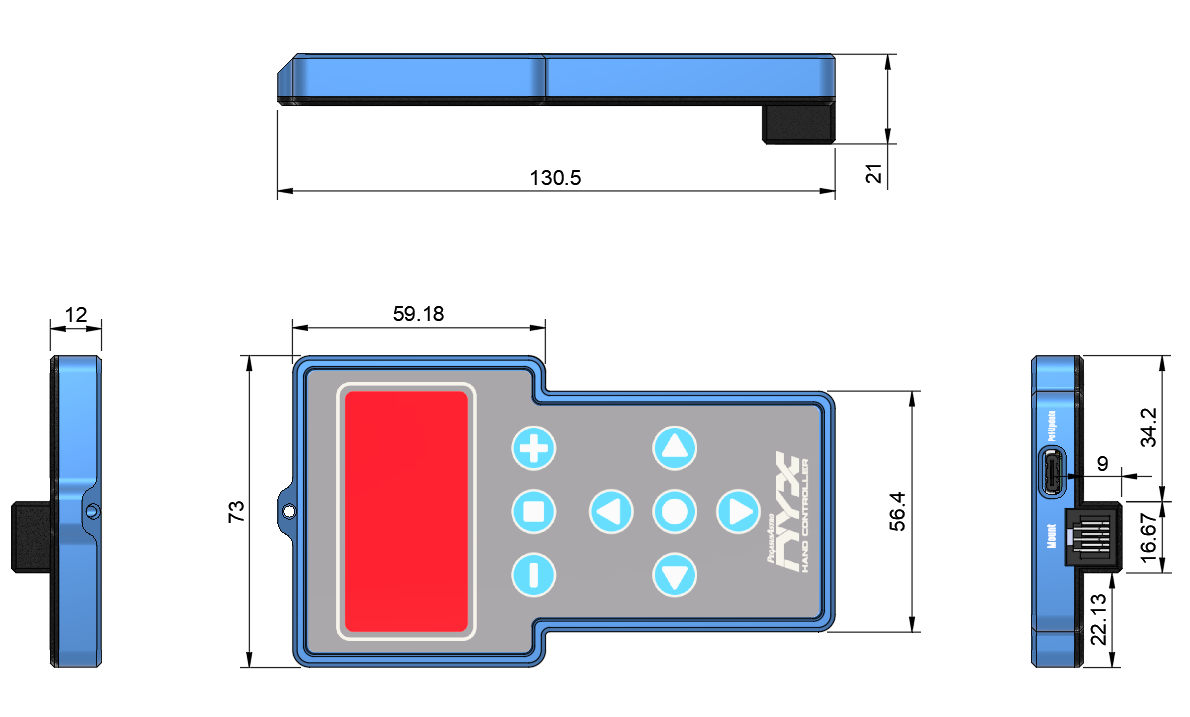

NYX-88 Hand Controller
The NYX-88 Harmonic mount is lightweight yet capable of handling heavy payloads. Currently I have only utilized it in Equatorial mode for visual observations.
Features
• Select Slew Rate & Move Axes
• Tracking Modes
• Star and Polar Alignment
• Goto Home / Park / Unpark
Additional Resources
• Pegasus Astro Mount webpage
• Documentation
– NYX Hand Controller Manual Version 1.1 (PDF)
– Hand Controller Firmware HowTo Upgrade (PDF)

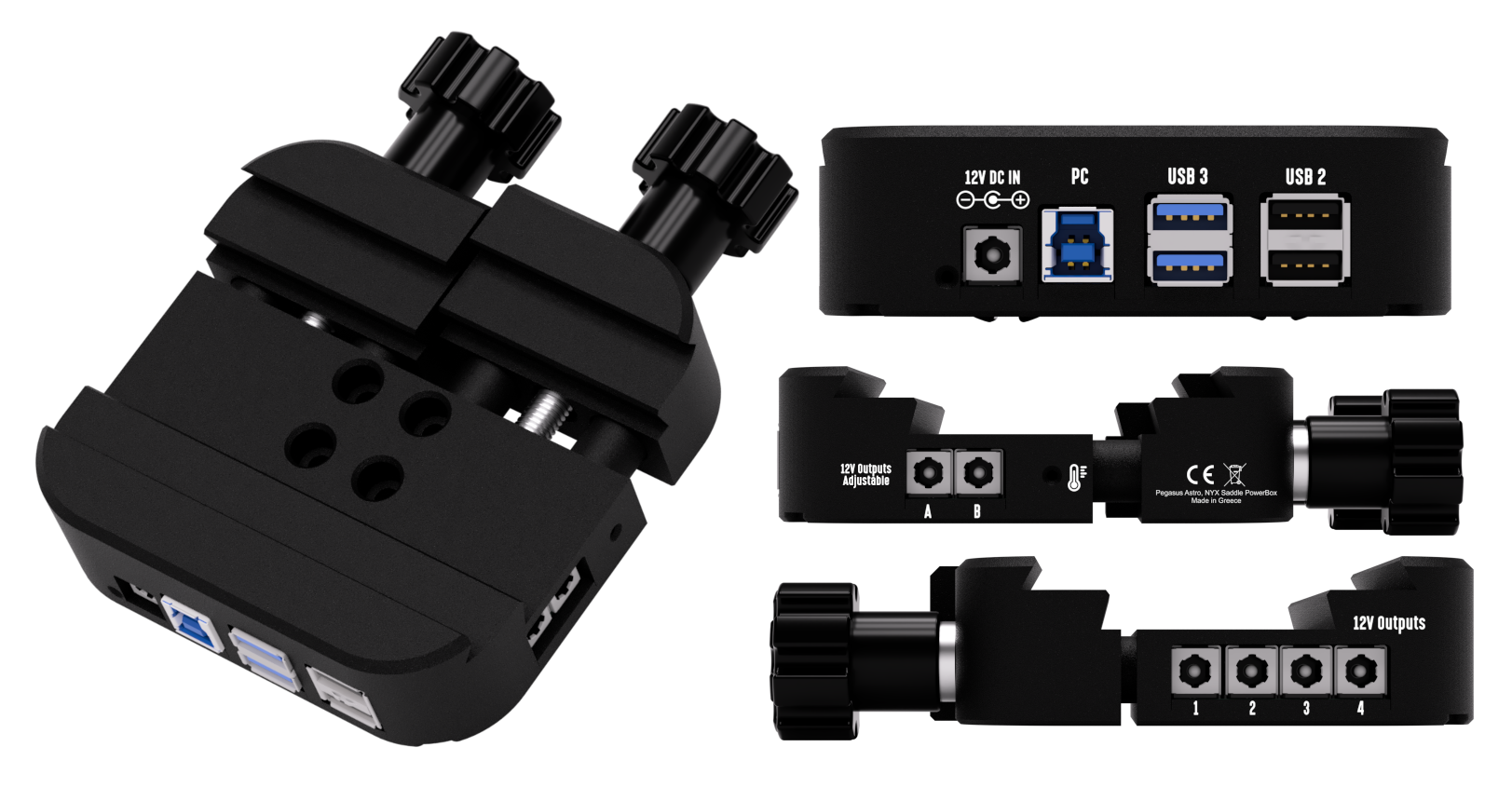

Saddle Powerbox
The saddle securely holds your telescope while also providing multiple power outputs for all your astronomy gear, including cameras, mount, dew heaters, and more.
Features
• Expandable to 4 + 2 x 12V DC Power outlets for your equipment.
(A single channel to switch all four outputs ON/OFF via software and Dew Heater outputs can be switched also to constant 12V)
• 10 Amps (120W) of total distributed current
• Built-in powered USB3 Hub (2 x USB3.1 Ports & 2 x USB2 Ports available).
• (USB3 ports are backward compatible with USB2 devices)
• USB Ports can deliver up to 3Amps – Suitable for Raspberry PI 3/4 power.
• Integrated ambient temperature and humidity sensor.
• 2 Channels PWM Dew Heaters – 2.1mm outputs.
(Adjust power levels via software).
Pair of cable adapters from DC 2.1 to RCA is included in box.
• Automatic adjusment of Dew Heater outputs.
• Power, current, and input voltage meter.
• Reverse Polarity Protection.
• USB / PC Controlled or Standalone Operation out of the box.
• Losmandy and Vixen Clamp.
• Available pucks for popular 3rd party mounts. (RST, EQ6, AM5)
Additional Resources
• Pegasus Astro Mount webpage
• Documentation
– NYX Hand Controller Manual Version 1.1 (PDF)
– Hand Controller Firmware HowTo Upgrade (PDF)

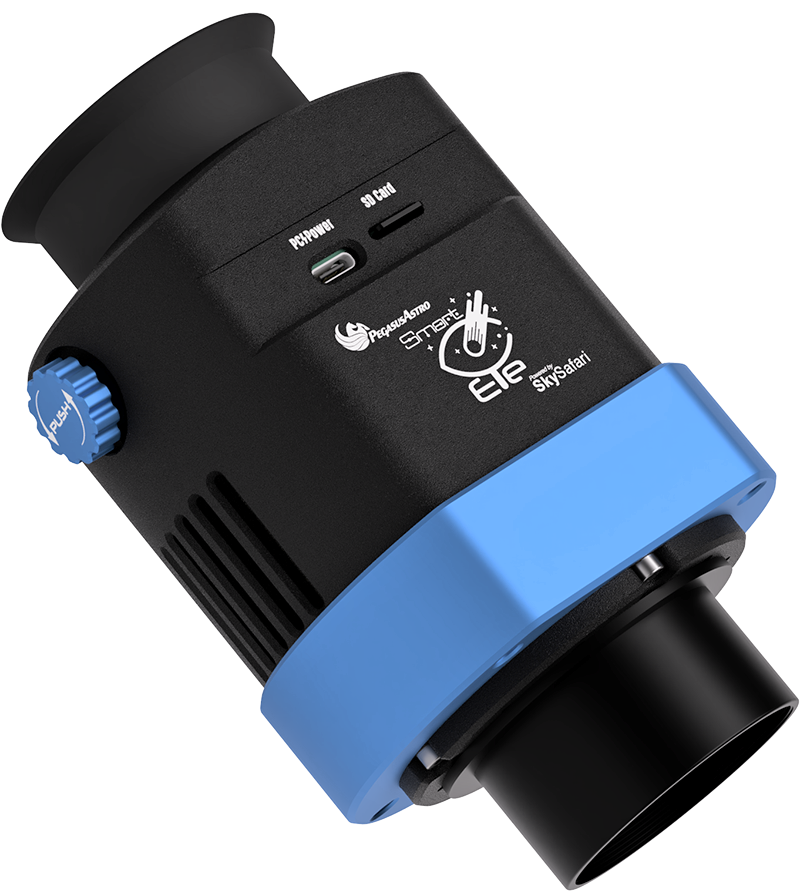

SmartEye
The Pegasus Astro SmartEye is a smart eyepiece that combines the best parts of both visual astronomy and astrophotography in one easy-to-use package. It uses the traditional form-factor of a 2-inch eyepiece, but inside is a cutting edge CMOS sensor, a premium OLED display, powerful live-stacking software, and a cooling fan to rival any traditional astrophotography setup. The SmartEye uses all of this technology to automatically live-stack images in real-time, revealing vibrant colors and details in deep-sky objects that regular eyepieces simply cannot show. What sets it apart from other astronomy gear is its simplicity and immediate results, with a design that is truly plug-and-play.
Specifications
• Sensor: IMX533
• Resolution: 3008 x 3008 pixels
• DisplayResolution: 2,560 x 2,560 pixels
• Pixel Size: 3.76um
• Eyepiece Barrel: 2-Inch
• Field of View: Wide 90° FOV, 0.47 in (12mm) Eye Relief
• Cooling: High-Quality 2-Stage Thermoelectric Cooling (TEC) Unit
• Diopter Range: +1 Diopter to -5 Diopters
• WiFi Support: Dual-Band (2.4 GHz and 5 GHz, IEEE 802.11 b/g/n/ac)
• Bluetooth: Version 5 With Bluetooth Low Energy (BLE) Support
• Storage: Secure Digital (SD) Card Reader
• Power Requirements: 5 Volts / 3 Amps (USB Type-C)
• Backfocus Distance: 0.49 in (12.5mm)
• Weight: 28 oz (795g)
• Water Resistance: Ingress Protection (IPX) Rated
• Operating Temperature: -4°F to 122°F (-20°C to +50°C)
• Warranty: 2-Year
• Compatibility: Both iOS (Apple) and Android Devices
• Dimensions: 4.89 in x 3.70 in (124.3mm x 94mm)
Additional Resources
• Images taken with SmartEye
• Pegasus Astro SmartEye webpage
• Firmware Update Download Page (Pegasus Astro)
• Documentation
– User Manual Version 1.5 (PDF)
Videos
– Connecting NYX-88 to SmartEye (MP4)
- SmartEye Setup with Mount (MP4)
- Space Koala Smart Eye Review (MP4)
| Imaging Train Configuration | Specifications |
|---|---|
| Celestron 6″ SCT | Baader 2″ Diagonal | SmartEye | | Image Size = 21.2′ x 21.2′ | Image Radis = 0.250 deg | Pix Scale = 0.497″/pix | Calculated: | FL = 1560mm | FR = 10 | 0.5x Reducer Image Size = 31.5′ x 31.5′ | Image Radis = 0.0.37 deg | Pix Scale = 0.0.738″/pix | Calculated: | FL = 1055mm | FR = 7.03 | |
| Takhashi FS-60C | Baader 2″ Diagonal | SmartEye | | Image Size = 110′ x 110′ | Image Radis = 1.3deg | Pix Scale = 2.57″/pix | Calculated: | FL = 302mm | FR = 5.0 | |
| Meade 7″ Mak | Baader 2″ Diagonal | 0.5x Reducer | SmartEye | | Image Size = 19.4 x 19.4′ | Image Radis = 0.23deg | Pix Scale = 0.445″/pix | Calculated: | FL = 1705mm | FR = 9.58 | |
